Designed for a perfect fit.
DT9205A large screen digital multimeter is a High quality multi-range automatic shutdown Value practical.

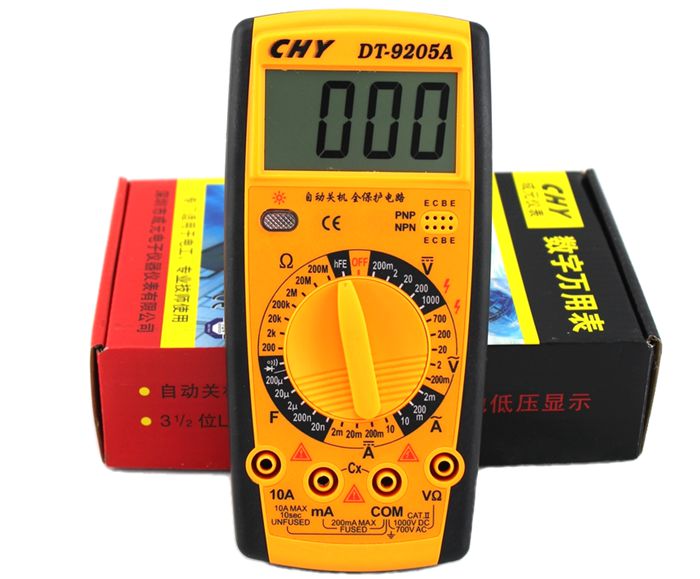

Digital Multimeter – CHY DT-9205A
DT9205A Digital multimeter is an easy to operate, accurate readings, full-featured, compact, easy to carry, use battery-powered handheld large screen LCD multimeter, DT9205A digital multimeter for three and a half, the table can be used to measure DC voltage/current, AC voltage/current, resistance, capacitance test, diode test, transistor HFE measurement, and circuit off. For engineering design, laboratory, pilot production, factory affairs, field operations, and industrial maintenance use. Full-featured the wrong stalls as well as over-range protection.
Anti-burn performance better automatic shutdown function.
COMS integrated circuit, the principle of double integral A/D conversion.
Automatic zero, auto-polarity selection.
6-off test high-quality buzzer sound.
Parameter indicators.
Specification:
1. Product Name: Digital Multimeter.
2. AC Voltage (V): 200mV, 2V, 20V, 200V, 700V.
3. DC Voltage (V): 200mV, 2V, 20V, 200V,1000V.
4. AC Current (A): 2mA, 20mA, 200mA, 20A.
5. DC Current (A): 200uA, 2mA, 20mA, 200mA, 20A.
6. Resistance (Ohm): 200, 2k, 20k, 200k, 2M, 20M, 200M.
7. Capacitance (F): 2nF, 20nF, 200nF, 2uF, 200uF.
8. Other Measuring Function: Diode, hFE.
9. Power By: 1 x 9V 6F22 battery
10. Main Color: Black & Orange.
11. Mateiral: Plastic
12. Test Leads Total Length: Approx 70cm/27.6″.
13. Multimeter Size: Approx 20 x 9 x 3.5cm/6.9″ x 3.3″ x 1.4″ (L*W*T).
